Energy Management System
Communication-based intelligent lithium battery outdoor integrated cabinet
Product Features
Battery features self-protection against high temperature and water ingress,with no fire risk.
Reliable
● All-in-one outdoor design with factory pre-assembly and pre-commissioning for fast deployment.
● Plug-and-play lithium battery modules for easy replacement and emergency swapping between sites.
● Intelligent sector power control supports 5G DCDU for on-demand power supply and high-efficiency energy saving.
● Wide temperature adaptability: operates stably from -40°C to +60°C with automatic heating and cooling.
● Clean air circulation system with dust and catkin removal, suitable for sandy and dusty environments.
● Anti-pry & anti-theft security: dual-lock system with remote access, identity recognition and photo recording on door opening.
● Comprehensive environment monitoring: real-time detection of smoke, water immersion, temperature and humidity.
● Multi-power supply switching: automatic switch between mains, battery and diesel generator for uninterrupted power.
● Intelligent remote management: real-time monitoring, data analysis, fault alarm and historical records via PC and mobile APP.
● High protection grade: lightning protection (40kA/80kA) and stable performance up to 2000m altitude.
Scope of Application
This intelligent lithium battery outdoor integrated cabinet is specially designed for outdoor wireless communication base stations, including 4G and 5G base stations.
It is widely used in outdoor communication sites, small commercial power scenarios, remote areas, and harsh environments such as high or low temperature, sandstorm, and humid conditions.
It provides peak shaving and valley filling, uninterrupted backup power, sector power control, energy saving, and secure outdoor power supply for stable and reliable operation.
Technical Specifications
model |
BPA540 |
BPA450 |
BPB150 |
|||
Battery |
48V/45Ah, 540×200×150(mm), RS485 interface, 5 LEDs on the front to indicate the remaining battery power. |
|||||
Number of battery compartments |
12 warehouses |
10 warehouses |
10 warehouses |
4 warehouses |
||
Current specification |
120A |
100A |
80A |
60A |
60A |
40A |
Working power supply |
180~250V/ac |
|||||
Battery insertion and removal force |
No more than 100N |
|||||
Working environment temperature |
-40~+60℃ (including solar radiation) |
|||||
Working environment humidity |
95%RH(40℃±2℃) |
|||||
Working altitude |
≤2000 meters |
|||||
sandstorm |
Moderate dust storm, visibility no more than 500 meters. |
|||||
Fiber optic splitter |
48 ports |
48 ports |
48 ports |
|||
DCDU configuration |
5G DCDU |
|||||
Rack dimensions (length * width * height) are for reference only; the actual product shall prevail. |
78*78*200cm |
78*78*200cm |
78*78*150cm |
|||
wireless network |
4G |
|||||
Lightning protection function |
40kA/80kA(8/20us) |
|||||
battery protection |
Independent battery control, over-temperature and over-voltage protection |
|||||
Mobile APP |
Remote monitoring of cabinet operation and remote control of authorized door opening |
|||||
Backend management |
Remotely monitor cabinet operation and print reports such as electricity costs. |
|||||

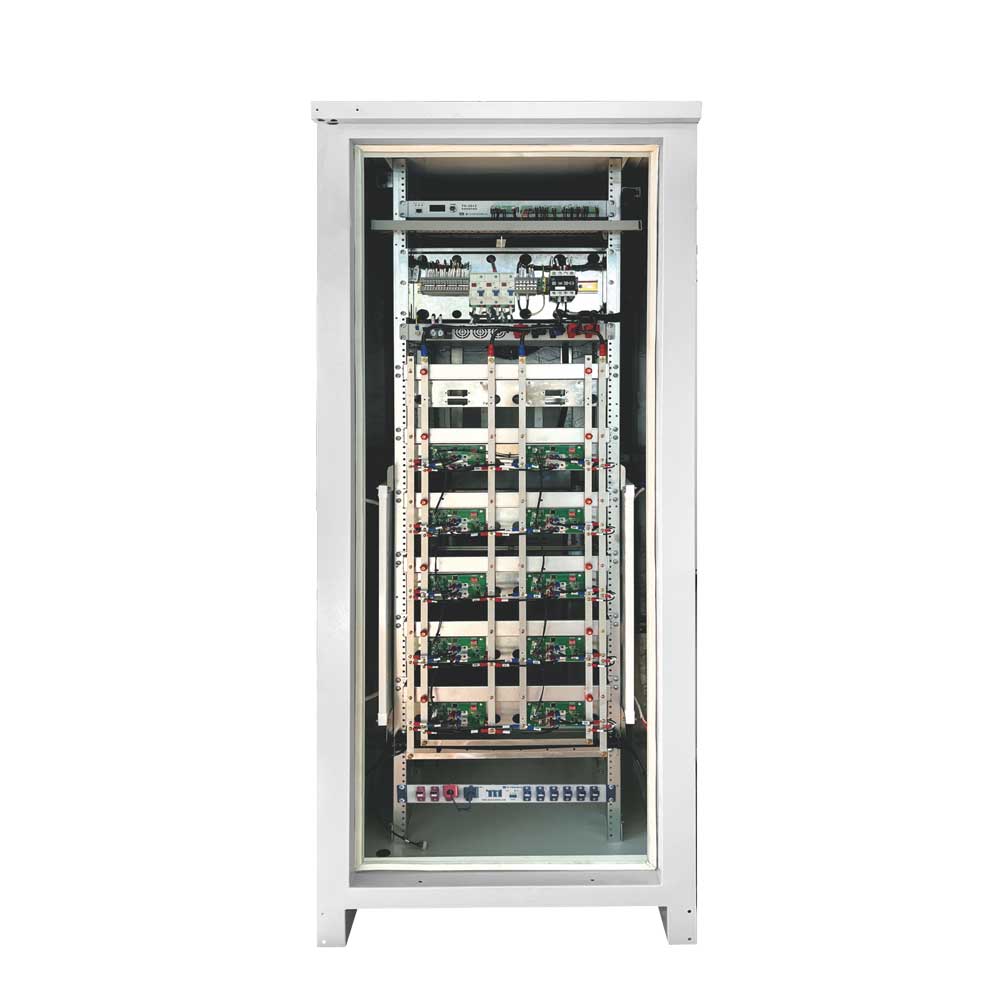

Cabinet Introduction

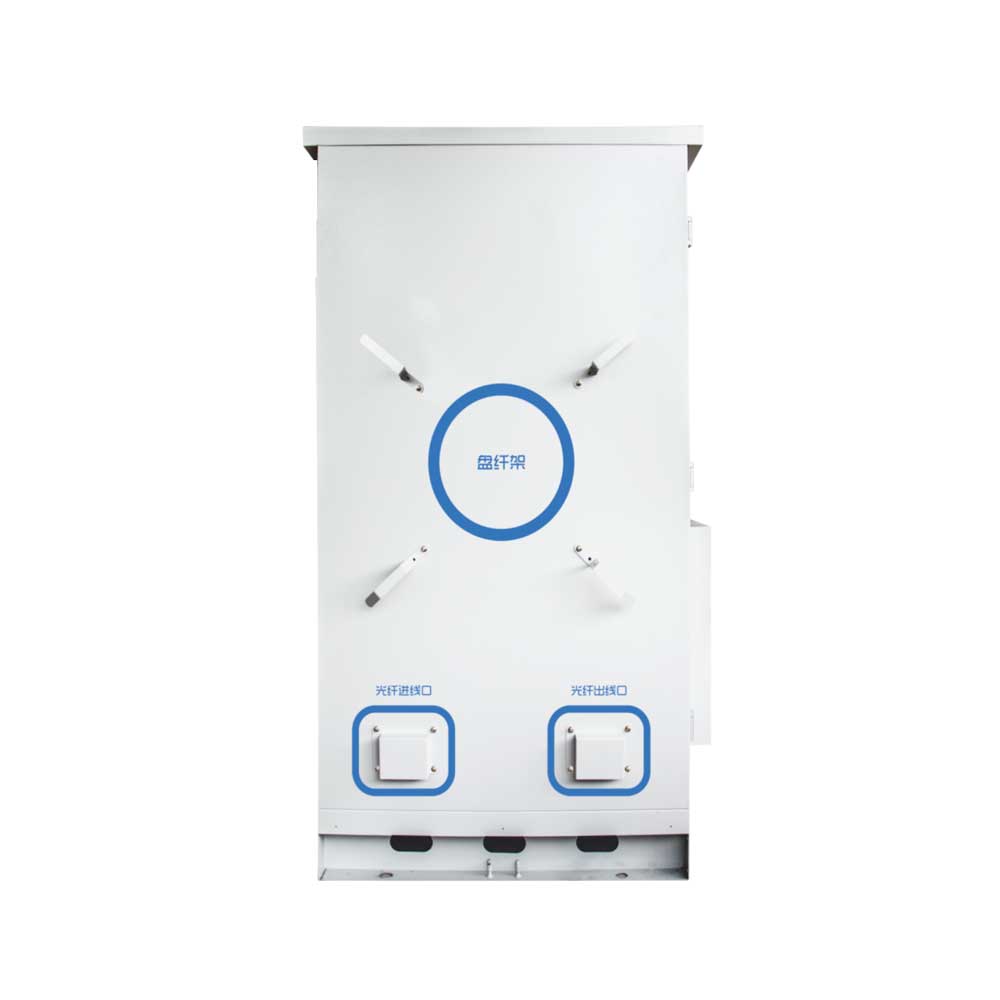

This intelligent lithium battery outdoor integrated cabinet adopts a highly integrated, prefabricated, pre-assembled and pre-commissioned structure for fast on-site deployment. It is equipped with a night maintenance light, power lightning protection, oil machine power supply circuit breaker, aviation socket, 220V AC power socket, air filtration and circulation system, pull type optical fiber box, fiber inlet/outlet and fiber management frame.
The cabinet supports plug and play battery modules for easy maintenance and emergency replacement between nearby sites. It provides reserved space for extended battery packs, BBU and DCDU. With fully enclosed space, negative pressure exhaust and positive pressure air supply, it realizes clean air circulation and automatic dust removal.
The cabinet adopts front and rear anti pry doors with identity recognition, remote control and photo upload functions to ensure security. It integrates complete power supply, temperature control, air management, anti theft, energy saving and environmental monitoring systems to provide a stable and reliable outdoor power supply solution.

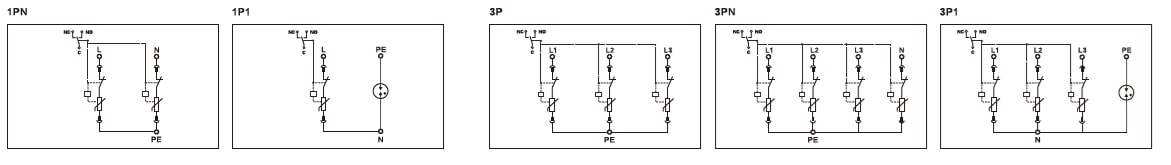

Basic Circuit Diagram
Dimensions
Item |
Size |
Battery module |
540 × 200 × 150 mm |
Cabinet installation dimensions (BPB) |
78 × 78 × 150 cm |
Cabinet installation dimensions (BPA) |
78 × 78 × 200 cm |
Cabinet height |
A: 2 m / B: 1.5 m |

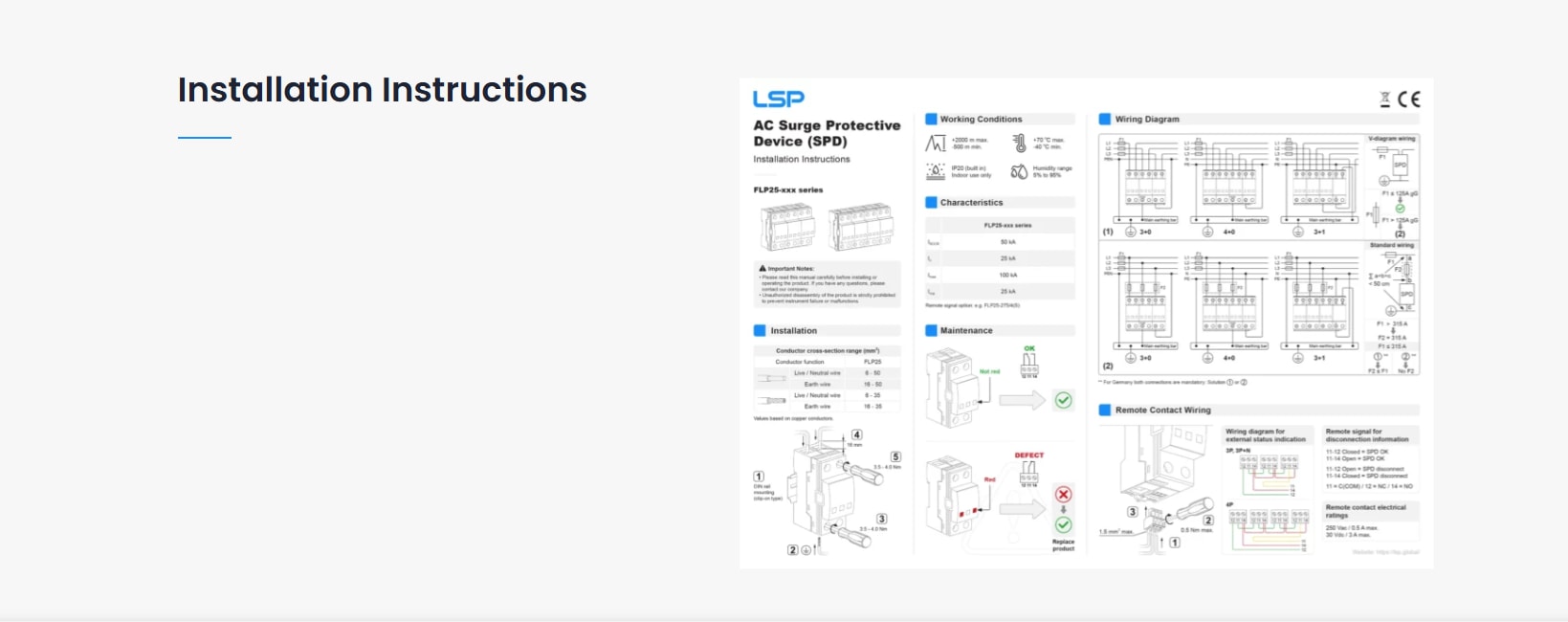

Installation Instructions
Certificate
Document Download
Quality Inspection(Test reference)
1 Inspection Reference
IEC61643.11 Surge Protective Devices (SPD) for Low-Voltage Distribution Systems
Part 1: Performance Requirements and Test Methods
GB/T 2828.1-2012 Sampling Inspection Procedures
Part 1: Sampling Plans for Inspection by Acceptance Quality Limit (AQL)
2 Incoming Inspection
Incoming material inspection is conducted based on the "Metal Parts Inspection Standard," "Plastic Parts Inspection Standard," "Electronic Parts Inspection Standard," "Auxiliary Materials Inspection Standard," and the GB/T 2828.1-2012 Sampling Inspection Procedure.
3 Finished Products Inspection
1) Routine test
Routine inspection is a 100% inspection conducted at the final stage of production on products from the production line. After inspection, no further processing is done, except for packaging and labeling.
2) Sampling test
Sampling inspection is performed according to the GB/T 2828.1 sampling standard.
3) Acceptance test
Verification inspection is a sampling inspection conducted to ensure that the product continues to meet the standard requirements. Verification inspection should be carried out according to the procedures and frequency specified by the standard.
Inspection Table
|
Inspection Items |
Routine test |
Sampling test |
Acceptance test |
|
Packaging |
|
√ |
|
|
Appearance Quality |
√ |
√ |
√ |
|
Structure and Shape |
√ |
||
|
Remote Signal Alarm Function |
√ |
√ |
√ |
|
U1mA Value Test |
√ |
√ |
|
|
Markings and Labels |
√ |
√ |
√ |
|
Direct Contact Protection Test |
√ |
||
|
Standby Power Consumption and Residual Current |
√ |
||
|
Protection Level |
√ |
||
|
Action Load Test |
√ |
||
|
Thermal Stability Test |
√ |
√ |
|
|
Temporary Overvoltage (TOV) Test |
√ |
||
|
Mechanical Strength |
√ |
||
|
Insulation Resistance |
√ |
||
|
Dielectric Strength |
√ |
||
|
Environment, IP Code |
√ |
||
|
Electrical Clearance and Creepage Distance |
√ |
||
|
Resistance to Abnormal Heat and Flammability |
√ |
||
|
Status Indicator Operation |
√ |
√ |
√ |
|
Isolation Between Separate Circuits |
√ |
||
|
Transportation Vibration Test |
√ |
||
|
Free Fall Test |
√ |
||
|
Insertion and Withdrawal Force Test Before Surge Impulse (for Pluggable Modules) |
√ |
√ |
