Energy Management System
Intelligent IntegratedEnergy Storage Cabinet
Product Features
Battery features self-protection against high temperature and water ingress,with no fire risk.
Reliable
● Power Management System: Battery charging and discharging,separate monitoring of AC and DC voltage and current,electricity billing and statistics (for reference only).
● Temperature Management System: When the temperature exceeds 40°℃,the exhaust and supply circulation fans start to operate, maintaining a synchronized internal cabinet temperature.

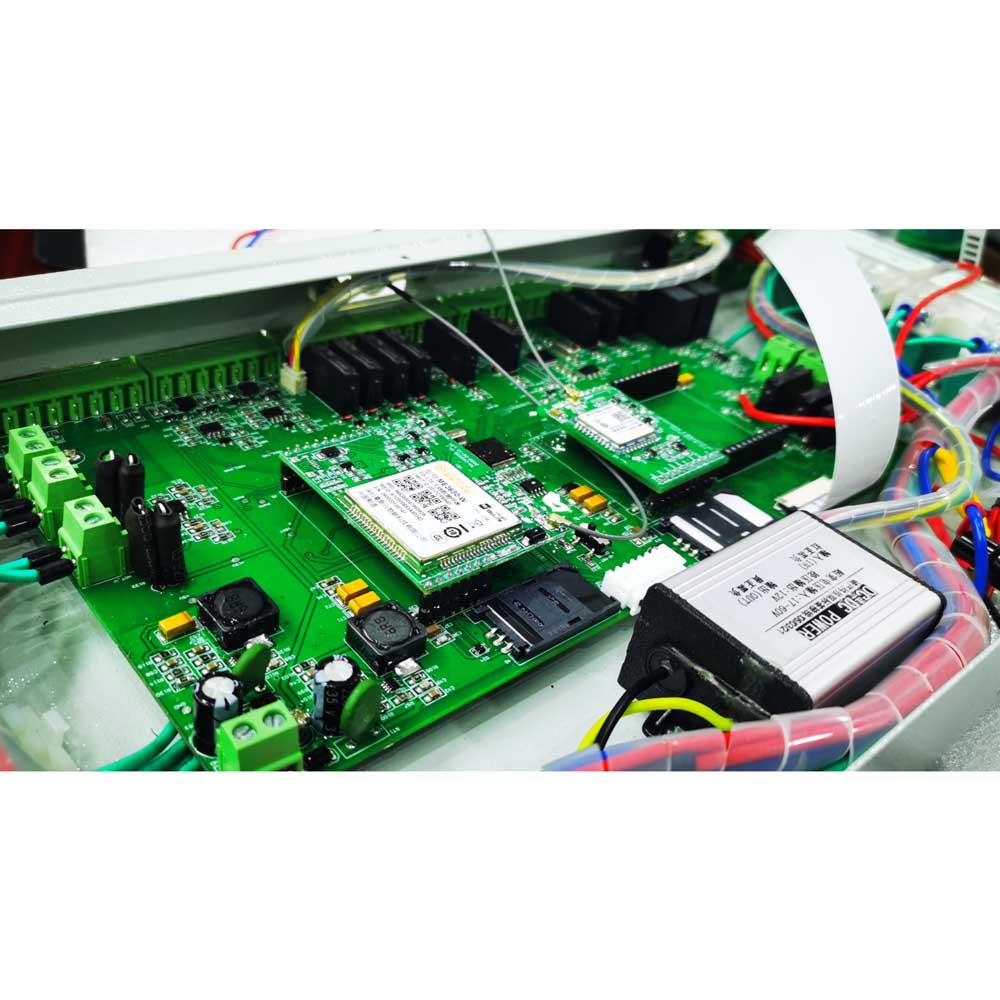

● Intelligent Management SystemReal-time status updates and remote diagnostics,battery group-level management.
● Energy Saving Management System: Features peak shaving, valley filling, and uninterruptible power supply functions.
● Environmental Control System: Environmental monitoring system: smoke detection, water leakage, temperature, and humidity.
Scope of Application
This integrated energy storage cabinet is designed for small commercial scenarios, outdoor sites, and backup power applications.It supports peak shaving and valley filling to reduce electricity costs, provides uninterrupted backup power (UPS), and ensures continuous power supply when the mains fails.It is suitable for rapid on-site deployment in commercial outlets, small industrial stations, mobile communication sites, and other scenarios requiring reliable, energy-saving, and integrated energy storage & power supply.Agricultural & Rural Infrastructure: Farm buildings, grain storage facilities, and rural power distribution systems
Technical Specifications
Model |
THJG1525-380/THJG1525-220 |
AC Parameters | |
Rated Output Power (kW) |
18 |
Maximum Apparent Output Power(KVA) |
20 |
Rated Voltage(Vac) |
220/380 |
Rated Frequency (Hz) |
60 |
Maximum Output Curent(A) |
Maximum 63A per phase |
Battery Power Supply Power Factor Range |
Maximum 63A per phase |
Battery Output Waveform Distortion(THD) |
0.9(up to 1.0 at 0-40°℃) |
|
Battery Parameters
| |
Operating Voltage Range (V) |
±192V(8×series connection) |
Rated Discharge Current(A) |
10A |
Rated Charge Current(A) |
50A |
Single Battery Pack Capacity (kWh) |
2.5 |
Series Rated Capacity (kWh) |
25 |
|
UPS Parameters
| |
AC Input |
3W+N+PE,AC380/400/415V,50/60Hz,3*24.8A |
AC Output |
3W+N+PE,AC380/400/415V,50/60Hz,3*22.8A,15KVA/13.5kw |
DC Input |
±192V,37.5A |
Voltage Range (V) |
176Vac-280Vac:100%load;80Vac-176 Vac:linear derating |
Frequency Range (Hz) |
40~70 |
Input Power Factor |
≥0.99 |
Input THDI |
Resistive Full Load:≤3%;Non-linear Full Load:≤5% |
Charging Current(A) |
Adjustable 1-10A(Default:4A) |
Voltage (V) |
L-N:220/230/240V(Factory Default:220V);L-L:380/400/415V(Factory Default:380V) |
Frequency (Hz) |
Whenutilit is normal,tracks bypassinput;whenuit is abnormal,the unit operates at 50±0.1Hz or 60±0.1HzZ(Factory Default:50Hz) |
Waveform |
Sine Wave |
Voltage Distortion |
Resistive FullLoad≤1%;Non-inear Full Load ≤4% |
Power Factor |
0.9(PF=1.0 can sustain full load continuously) |
Overload Capacity |
Inverter:≤115%:No Protection,115%-130%:15min,130%-155%:1min,>155%:200ms Bypass:≤130%:No Protecion,130%-155%:1min,>155%:200ms |
DC Start Function |
Equipped with |
Panel Display |
UPS Operating Status Displayed on LCD |
Communication Interface |
RS485 |
Alarm Function |
Battery Low,Utility Abnormal,UPS Fault,Output Overload,etc. |
Protection Functions |
Batey Under-voltage Protection,Oveload Protection,Shot-circuit rotection,Overtemperature Protection,Input Over-voltage P ion Fault,e |
Acoustic Noise(dB) |
<55°℃(Ambient Temperature) |
Temperature Control System | |
Temperature Control System |
Equipped with Over-temperature /Under-temperature Protection |
Fire Protection System | |
Passive Fire Protection |
Equipped with Fire Alarm (Smoke Detector) |
Passive Fire Protection |
Equipped with Water Leakage Detection |
Environmental Parameters | |
Operating Temperature Range(°C) |
-20℃~+50°℃ |
Operating Altitude (m) |
2000 |
Protection Level |
IP54 |
Relative Humidity Range (%) |
0%-95%Non-condensing |

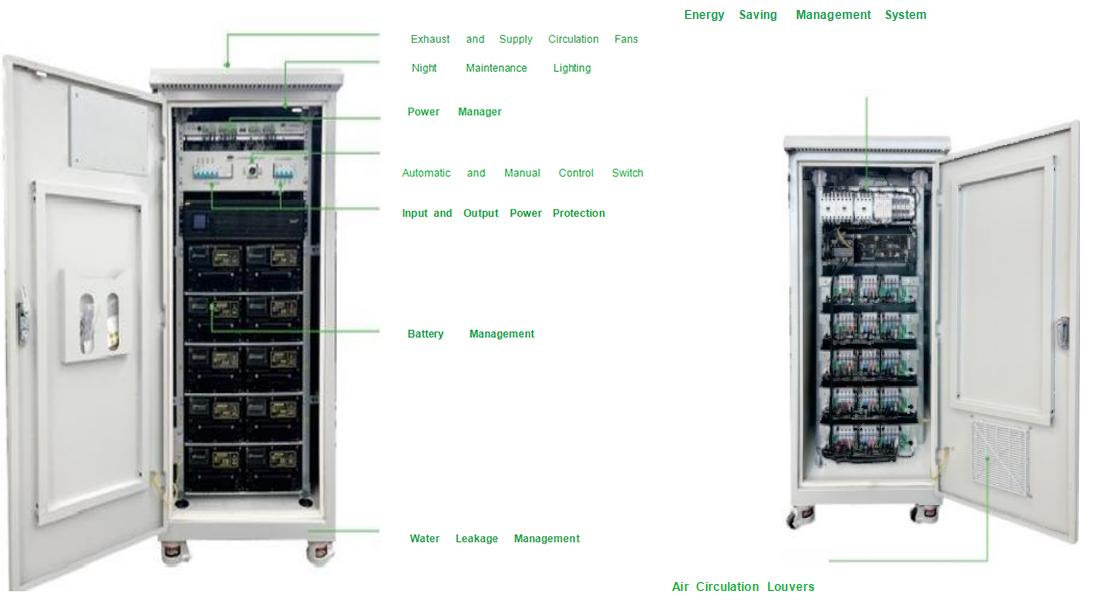

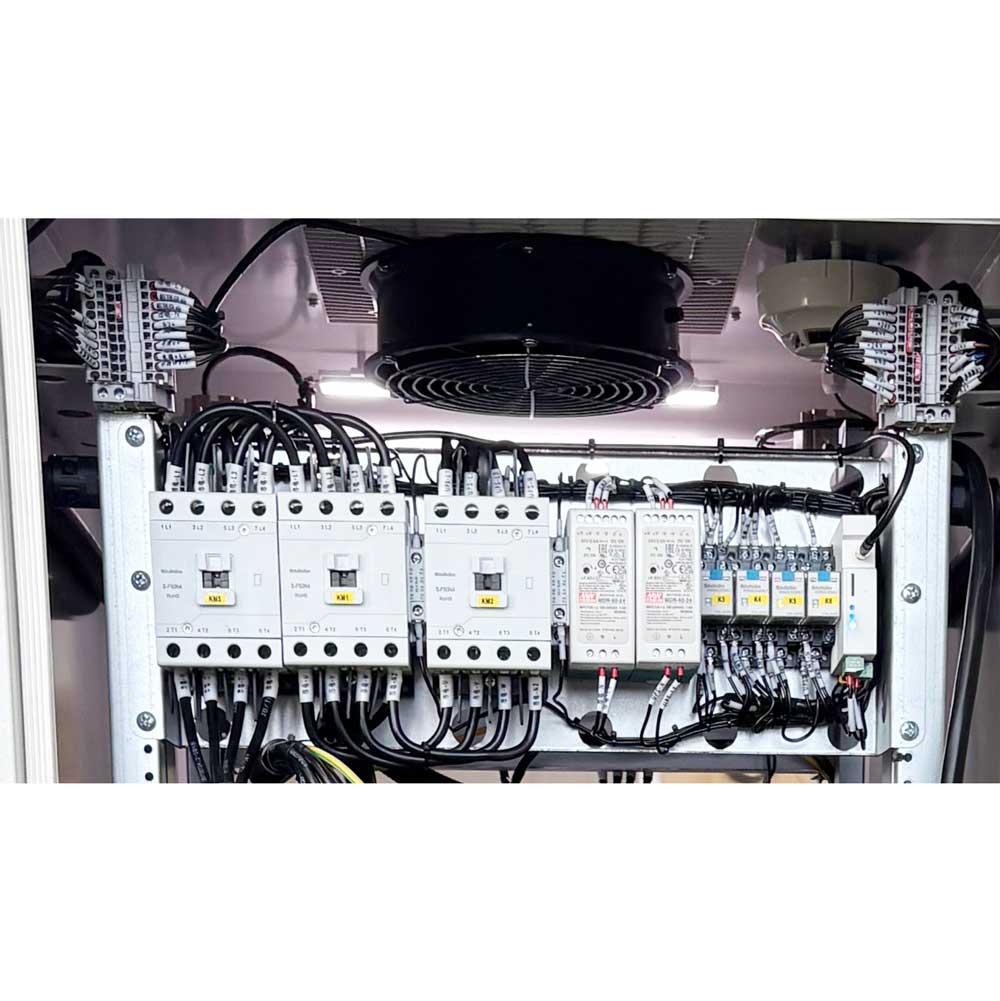

Cabinet Introduction
Basic Circuit Diagram
Dimensions
Overall Dimensions (mm)
● Main cabinet outline: 658 × 624 × 1460 mm
● Alternative cabinet size: 844 × 760 × 1567 mm
Battery Module Dimensions (mm)
● Single battery pack: 540 × 200 × 150 mm
Height Definition
● Cabinet height (Type A): 1.8 meters (1800 mm)
Installation Instructions
Certificate
Document Download
Quality Inspection(Test reference)
1 Inspection Reference
IEC61643.11 Surge Protective Devices (SPD) for Low-Voltage Distribution Systems
Part 1: Performance Requirements and Test Methods
GB/T 2828.1-2012 Sampling Inspection Procedures
Part 1: Sampling Plans for Inspection by Acceptance Quality Limit (AQL)
2 Incoming Inspection
Incoming material inspection is conducted based on the "Metal Parts Inspection Standard," "Plastic Parts Inspection Standard," "Electronic Parts Inspection Standard," "Auxiliary Materials Inspection Standard," and the GB/T 2828.1-2012 Sampling Inspection Procedure.
3 Finished Products Inspection
1) Routine test
Routine inspection is a 100% inspection conducted at the final stage of production on products from the production line. After inspection, no further processing is done, except for packaging and labeling.
2) Sampling test
Sampling inspection is performed according to the GB/T 2828.1 sampling standard.
3) Acceptance test
Verification inspection is a sampling inspection conducted to ensure that the product continues to meet the standard requirements. Verification inspection should be carried out according to the procedures and frequency specified by the standard.
Inspection Table
|
Inspection Items |
Routine test |
Sampling test |
Acceptance test |
|
Packaging |
|
√ |
|
|
Appearance Quality |
√ |
√ |
√ |
|
Structure and Shape |
√ |
||
|
Remote Signal Alarm Function |
√ |
√ |
√ |
|
U1mA Value Test |
√ |
√ |
|
|
Markings and Labels |
√ |
√ |
√ |
|
Direct Contact Protection Test |
√ |
||
|
Standby Power Consumption and Residual Current |
√ |
||
|
Protection Level |
√ |
||
|
Action Load Test |
√ |
||
|
Thermal Stability Test |
√ |
√ |
|
|
Temporary Overvoltage (TOV) Test |
√ |
||
|
Mechanical Strength |
√ |
||
|
Insulation Resistance |
√ |
||
|
Dielectric Strength |
√ |
||
|
Environment, IP Code |
√ |
||
|
Electrical Clearance and Creepage Distance |
√ |
||
|
Resistance to Abnormal Heat and Flammability |
√ |
||
|
Status Indicator Operation |
√ |
√ |
√ |
|
Isolation Between Separate Circuits |
√ |
||
|
Transportation Vibration Test |
√ |
||
|
Free Fall Test |
√ |
||
|
Insertion and Withdrawal Force Test Before Surge Impulse (for Pluggable Modules) |
√ |
√ |
