Smart Lightning Monitoring &Warning System
Intelligent lightning protection system
Product Features
● Independent CT sensor with advanced algorithms accurately extracts SPD leakage current.
● High-sensitivity CT sensor monitors SPD health, triggering early warnings for degradation or failure.
● Real-Time SPD Status Monitoring
● SPD External Disconnector Monitoring
● Flexible & Optimized Network Structure
● CQC Certification
Scope of Application
Based on the first-generation product, the online monitoring system for lightning protection is a new product equipped with surge protector.Besides the online monitoring of the tripping state, grounding state, lightning intensity, lightning occurrence time and deterioration trend of the surge protector, it also monitors the remaining life of SSD, tripping state of SSD, power grid voltage and other parameters. It can automatically collect data and realize flexible networking and autonomous alarm function through RS485 communication.
Technical Specifications
| name | Centralized controller | Centralized controller | Repeaters |
| Model | TZ1 | TZ2 | TO |
| operating voltage | 12VDC | 12VDC | 12VDC |
| communication mode | TCP/IP | 4G | RS485 |
| transmission distance | within 100 meter wire | unlimited distance | within 1000 meters |
| Remarks | It carries 30 SPD intelligent monitoring devices within 1000 meters, and can extend the communication distance by adding Repeaters to ensure communication quality | — | — |

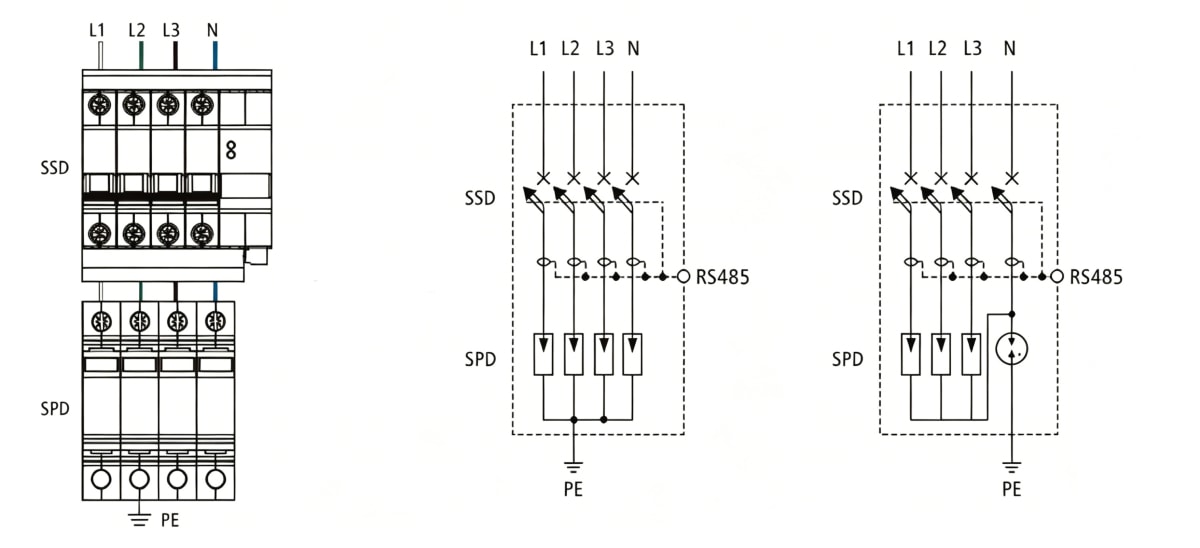

Basic Circuit Diagram

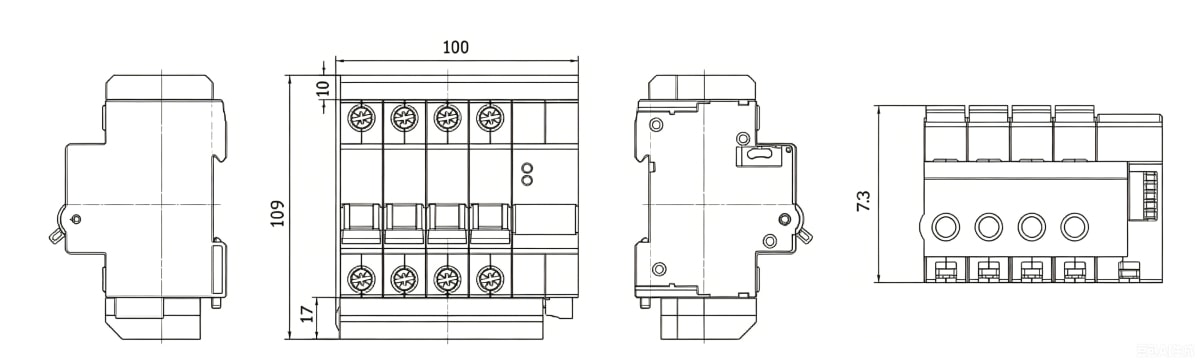

Dimensions
Certificate
Document Download
Quality Inspection(Test reference)
1 Inspection Reference
IEC61643.11 Surge Protective Devices (SPD) for Low-Voltage Distribution Systems
Part 1: Performance Requirements and Test Methods
GB/T 2828.1-2012 Sampling Inspection Procedures
Part 1: Sampling Plans for Inspection by Acceptance Quality Limit (AQL)
2 Incoming Inspection
Incoming material inspection is conducted based on the "Metal Parts Inspection Standard," "Plastic Parts Inspection Standard," "Electronic Parts Inspection Standard," "Auxiliary Materials Inspection Standard," and the GB/T 2828.1-2012 Sampling Inspection Procedure.
3 Finished Products Inspection
1) Routine test
Routine inspection is a 100% inspection conducted at the final stage of production on products from the production line. After inspection, no further processing is done, except for packaging and labeling.
2) Sampling test
Sampling inspection is performed according to the GB/T 2828.1 sampling standard.
3) Acceptance test
Verification inspection is a sampling inspection conducted to ensure that the product continues to meet the standard requirements. Verification inspection should be carried out according to the procedures and frequency specified by the standard.
Inspection Table
|
Inspection Items |
Routine test |
Sampling test |
Acceptance test |
|
Packaging |
|
√ |
|
|
Appearance Quality |
√ |
√ |
√ |
|
Structure and Shape |
√ |
||
|
Remote Signal Alarm Function |
√ |
√ |
√ |
|
U1mA Value Test |
√ |
√ |
|
|
Markings and Labels |
√ |
√ |
√ |
|
Direct Contact Protection Test |
√ |
||
|
Standby Power Consumption and Residual Current |
√ |
||
|
Protection Level |
√ |
||
|
Action Load Test |
√ |
||
|
Thermal Stability Test |
√ |
√ |
|
|
Temporary Overvoltage (TOV) Test |
√ |
||
|
Mechanical Strength |
√ |
||
|
Insulation Resistance |
√ |
||
|
Dielectric Strength |
√ |
||
|
Environment, IP Code |
√ |
||
|
Electrical Clearance and Creepage Distance |
√ |
||
|
Resistance to Abnormal Heat and Flammability |
√ |
||
|
Status Indicator Operation |
√ |
√ |
√ |
|
Isolation Between Separate Circuits |
√ |
||
|
Transportation Vibration Test |
√ |
||
|
Free Fall Test |
√ |
||
|
Insertion and Withdrawal Force Test Before Surge Impulse (for Pluggable Modules) |
√ |
√ |
