Smart Lightning Monitoring &Warning System

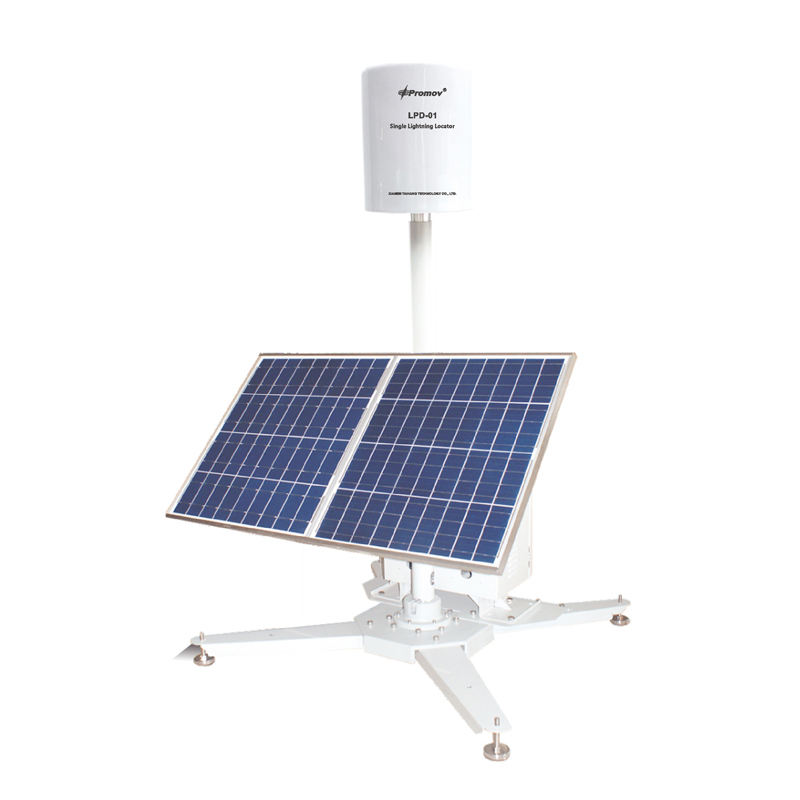

LPD-01 Single Lightning Locator
Product Features
● Real-time data display, with monitoring range and area marked on the map
● Real-time monitoring of lightning location
● Real-time monitoring of lightning occurrence time
● Real-time monitoring of lightning occurrence times
● Real-time monitoring of lightning intensity
● Real-time monitoring of lightning polarity
Scope of Application
A single lightning locator is an information system that can provide effective and real-time safety decisions before a large-scale thunderstorm is released. It can detect the occurrence of thunderstorms in real time, detect the occurrence of lightning strikes in time after the first lightning strike, and transmit information to warn of danger. Lightning locators can be used for real-time monitoring of lightning information when thunderstorms occur, providing strong technical support for relevant departments to do a good job in lightning protection and disaster reduction.
The single lightning locator uses the principle of measuring environmental electromagnetic field monitoring to detect thundercloud lightning. The product can detect lightning in thunderclouds within 50 kilometers based on changes in the environmental electromagnetic field. When the electric field strength of the static field in space gradually increases and keeps changing, it indicates that lightning is likely to occur in the area. Lightning locator can help users deal with lightning in a timely manner after it occurs and reduce the losses caused by lightning strikes.
Technical Specifications
| Parameter | LPD-01 |
| Model | LPD-01 |
| Working power supply | 24VDC |
| Power consumption | < 3W |
| Azimuth accuracy | < 5° |
| Distance accuracy | < 5km |
| Measurement range | Radius 50km |
| Monitoring lightning type | Cloud-to-ground (CG) |
| Measurement lightning information | Lightning intensity, direction, polarity, occurrence time |
| Lightning monitoring frequency | 1 time/1s |
| Data storage | Local storage and data sent to cloud server storage |
| Communication method | Ethernet (WAN or LAN can be customized) |
| Number of records | Local 512 |
| Working temperature and humidity | -40°C ~ +60°C; 5%RH ~ 95%RH without condensation |
| Storage temperature and humidity | -40°C ~ +65°C; 5%RH ~ 95%RH without condensation |
| Shell protection level | IP65 |
| Dimensions (mm) | 400 × 400 × 1240 |

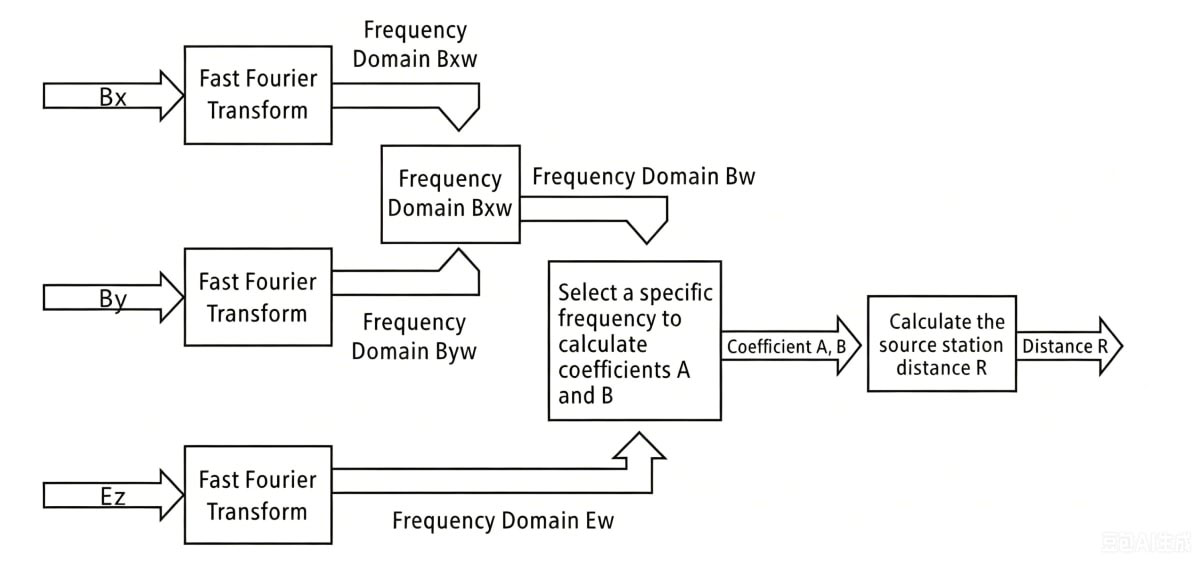

Basic Circuit Diagram

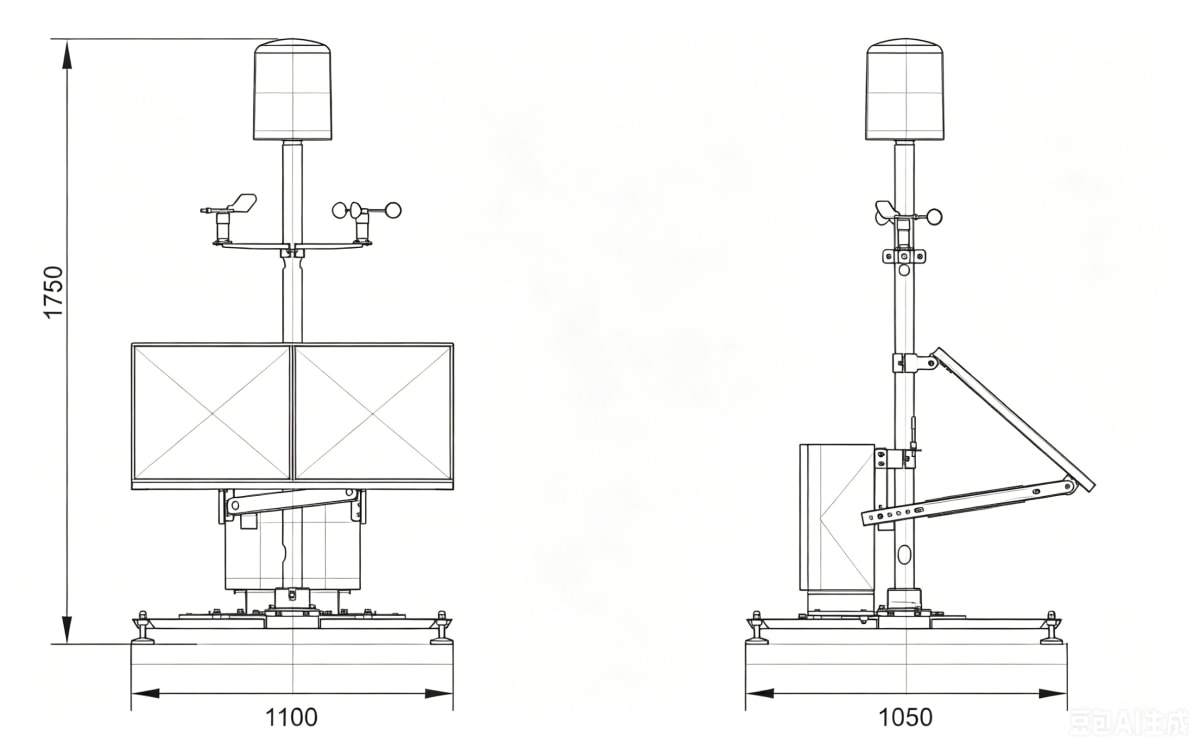

Dimensions
Certificate
Document Download
Quality Inspection(Test reference)
1 Inspection Reference
IEC61643.11 Surge Protective Devices (SPD) for Low-Voltage Distribution Systems
Part 1: Performance Requirements and Test Methods
GB/T 2828.1-2012 Sampling Inspection Procedures
Part 1: Sampling Plans for Inspection by Acceptance Quality Limit (AQL)
2 Incoming Inspection
Incoming material inspection is conducted based on the "Metal Parts Inspection Standard," "Plastic Parts Inspection Standard," "Electronic Parts Inspection Standard," "Auxiliary Materials Inspection Standard," and the GB/T 2828.1-2012 Sampling Inspection Procedure.
3 Finished Products Inspection
1) Routine test
Routine inspection is a 100% inspection conducted at the final stage of production on products from the production line. After inspection, no further processing is done, except for packaging and labeling.
2) Sampling test
Sampling inspection is performed according to the GB/T 2828.1 sampling standard.
3) Acceptance test
Verification inspection is a sampling inspection conducted to ensure that the product continues to meet the standard requirements. Verification inspection should be carried out according to the procedures and frequency specified by the standard.
Inspection Table
|
Inspection Items |
Routine test |
Sampling test |
Acceptance test |
|
Packaging |
|
√ |
|
|
Appearance Quality |
√ |
√ |
√ |
|
Structure and Shape |
√ |
||
|
Remote Signal Alarm Function |
√ |
√ |
√ |
|
U1mA Value Test |
√ |
√ |
|
|
Markings and Labels |
√ |
√ |
√ |
|
Direct Contact Protection Test |
√ |
||
|
Standby Power Consumption and Residual Current |
√ |
||
|
Protection Level |
√ |
||
|
Action Load Test |
√ |
||
|
Thermal Stability Test |
√ |
√ |
|
|
Temporary Overvoltage (TOV) Test |
√ |
||
|
Mechanical Strength |
√ |
||
|
Insulation Resistance |
√ |
||
|
Dielectric Strength |
√ |
||
|
Environment, IP Code |
√ |
||
|
Electrical Clearance and Creepage Distance |
√ |
||
|
Resistance to Abnormal Heat and Flammability |
√ |
||
|
Status Indicator Operation |
√ |
√ |
√ |
|
Isolation Between Separate Circuits |
√ |
||
|
Transportation Vibration Test |
√ |
||
|
Free Fall Test |
√ |
||
|
Insertion and Withdrawal Force Test Before Surge Impulse (for Pluggable Modules) |
√ |
√ |
