Signal surge protector

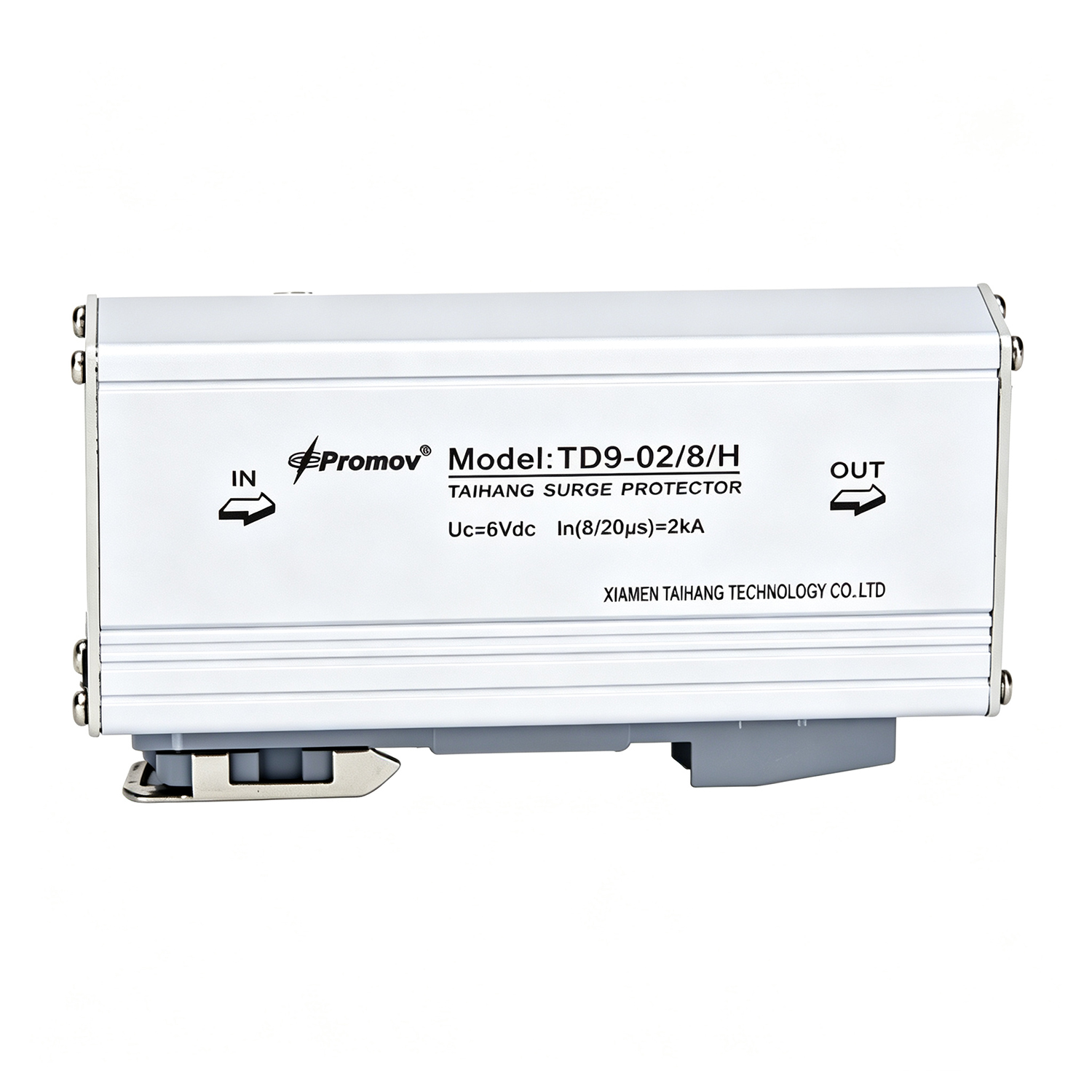

TD9-02 RJ45 Surge Protective Device (SPD) | Cat6 & PoE Network Lightning Arrester
Product Features
● High-Speed Compatibility: Fully compliant with 1000Base-T Gigabit Ethernet, Category 6 (Cat6) cabling, and backward compatible with Cat5e. It supports high-bandwidth data transmission without signal degradation.
● Power over Ethernet (PoE) Support: Perfect for modern network architectures, the TD9-02 flawlessly protects PoE, PoE+, and PoE++ (Power over Ethernet) applications without disrupting power delivery.
● Double Overcurrent Protection: Built with an advanced dual-stage overcurrent protection mechanism, significantly enhancing the safety, longevity, and stability of connected terminal equipment.
● IEC Standard Compliance: Manufactured and tested based on international IEC standards for communication line protectors, ensuring world-class engineering and reliability.
● Industrial-Grade Design: Equipped with standard RJ45 ports for effortless installation, making it highly convenient, practical, and maintenance-free.
Key Features & Benefits:
Comprehensive Compatibility: Tailor-made for 2-wire or 4-wire RS485/RS422 communication, fire alarm circuits, and low-voltage automation lines.
Easy, Rock-Solid Wiring: Equipped with universal screw crimping terminals, ensuring a reliable, low-resistance connection that stands up to industrial vibrations.
Advanced Equipotential Linking: Features a high-capacity surge discharge path. When dangerous voltage spikes occur, it shunts the surge directly to the earth ground within nanoseconds, limiting the output voltage to a perfectly safe level.
Don't wait for a costly system failure to upgrade your defenses. This compact surge protection device (SPD) minimizes data loss, prevents hardware damage, and ensures long-term system stability. Invest in professional-grade serial port protection today!
Technical Specifications
|
Item |
TD9−02/8/H/A |
TD9−02/8/H/B |
|
MODEL |
TD9−02/8/H/A |
TD9−02/8/H/B |
|
Electrical Parameters |
|
|
|
Rated Operating Voltage Un |
5VDC |
5VDC |
|
Max Continuous Operating Voltage Uc |
6.5VDC |
6.5VDC |
|
C2 Nominal Discharge Current(8/20μs) In |
2.5kA |
2.5kA |
|
C2 Maximum Discharge Current(8/20μs) Imax |
10kA |
10kA |
|
D1 Discharge Current(10/350μs) |
1kA |
1kA |
|
C3 Voltage Protection Level Up |
X−X ≤22V、X−C ≤600V |
X−X ≤22V、X−C ≤600V |
|
Common parameters |
|
|
|
Respond Time TA |
<1ns |
<1ns |
|
Transmission Speed |
1000Mbit/s |
1000Mbit/s |
|
Interface Protection Mode |
6 type of lines of module RJ45 1/2, 3/6, 4/5, 7/8 |
6 type of lines of module RJ45 1/2, 3/6, 4/5, 7/8 |
|
Cut-off Frequency |
250MHz |
250MHz |
|
Operating Temperature Range |
-40℃~70℃ |
-40℃~70℃ |
|
Operating Relative Humidity(indoor Temp) |
≤95% |
≤95% |
|
Installation Mode |
A: with rail |
B:without rail |

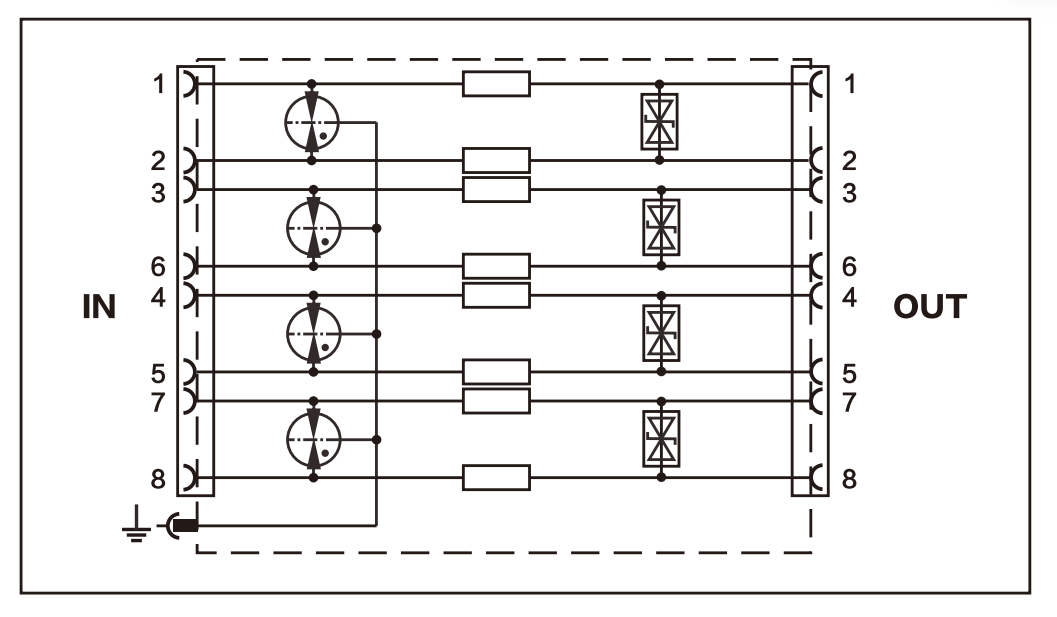

Basic Circuit Diagram

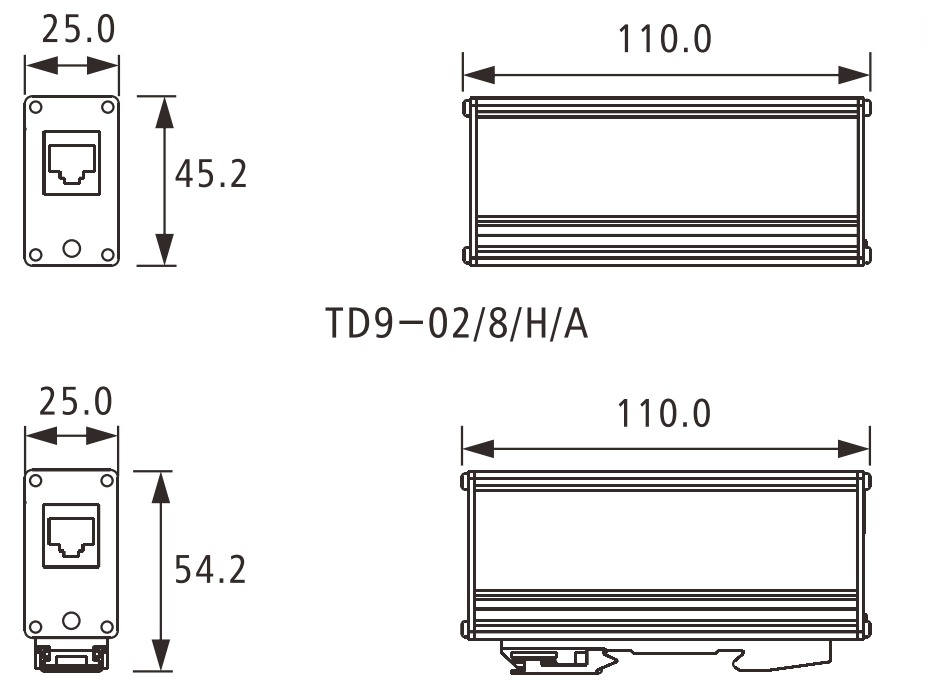

Dimensions
Certificate
Document Download
Quality Inspection(Test reference)
1 Inspection Reference
IEC61643.11 Surge Protective Devices (SPD) for Low-Voltage Distribution Systems
Part 1: Performance Requirements and Test Methods
GB/T 2828.1-2012 Sampling Inspection Procedures
Part 1: Sampling Plans for Inspection by Acceptance Quality Limit (AQL)
2 Incoming Inspection
Incoming material inspection is conducted based on the "Metal Parts Inspection Standard," "Plastic Parts Inspection Standard," "Electronic Parts Inspection Standard," "Auxiliary Materials Inspection Standard," and the GB/T 2828.1-2012 Sampling Inspection Procedure.
3 Finished Products Inspection
1) Routine test
Routine inspection is a 100% inspection conducted at the final stage of production on products from the production line. After inspection, no further processing is done, except for packaging and labeling.
2) Sampling test
Sampling inspection is performed according to the GB/T 2828.1 sampling standard.
3) Acceptance test
Verification inspection is a sampling inspection conducted to ensure that the product continues to meet the standard requirements. Verification inspection should be carried out according to the procedures and frequency specified by the standard.
Inspection Table
|
Inspection Items |
Routine test |
Sampling test |
Acceptance test |
|
Packaging |
|
√ |
|
|
Appearance Quality |
√ |
√ |
√ |
|
Structure and Shape |
√ |
||
|
Remote Signal Alarm Function |
√ |
√ |
√ |
|
U1mA Value Test |
√ |
√ |
|
|
Markings and Labels |
√ |
√ |
√ |
|
Direct Contact Protection Test |
√ |
||
|
Standby Power Consumption and Residual Current |
√ |
||
|
Protection Level |
√ |
||
|
Action Load Test |
√ |
||
|
Thermal Stability Test |
√ |
√ |
|
|
Temporary Overvoltage (TOV) Test |
√ |
||
|
Mechanical Strength |
√ |
||
|
Insulation Resistance |
√ |
||
|
Dielectric Strength |
√ |
||
|
Environment, IP Code |
√ |
||
|
Electrical Clearance and Creepage Distance |
√ |
||
|
Resistance to Abnormal Heat and Flammability |
√ |
||
|
Status Indicator Operation |
√ |
√ |
√ |
|
Isolation Between Separate Circuits |
√ |
||
|
Transportation Vibration Test |
√ |
||
|
Free Fall Test |
√ |
||
|
Insertion and Withdrawal Force Test Before Surge Impulse (for Pluggable Modules) |
√ |
√ |
