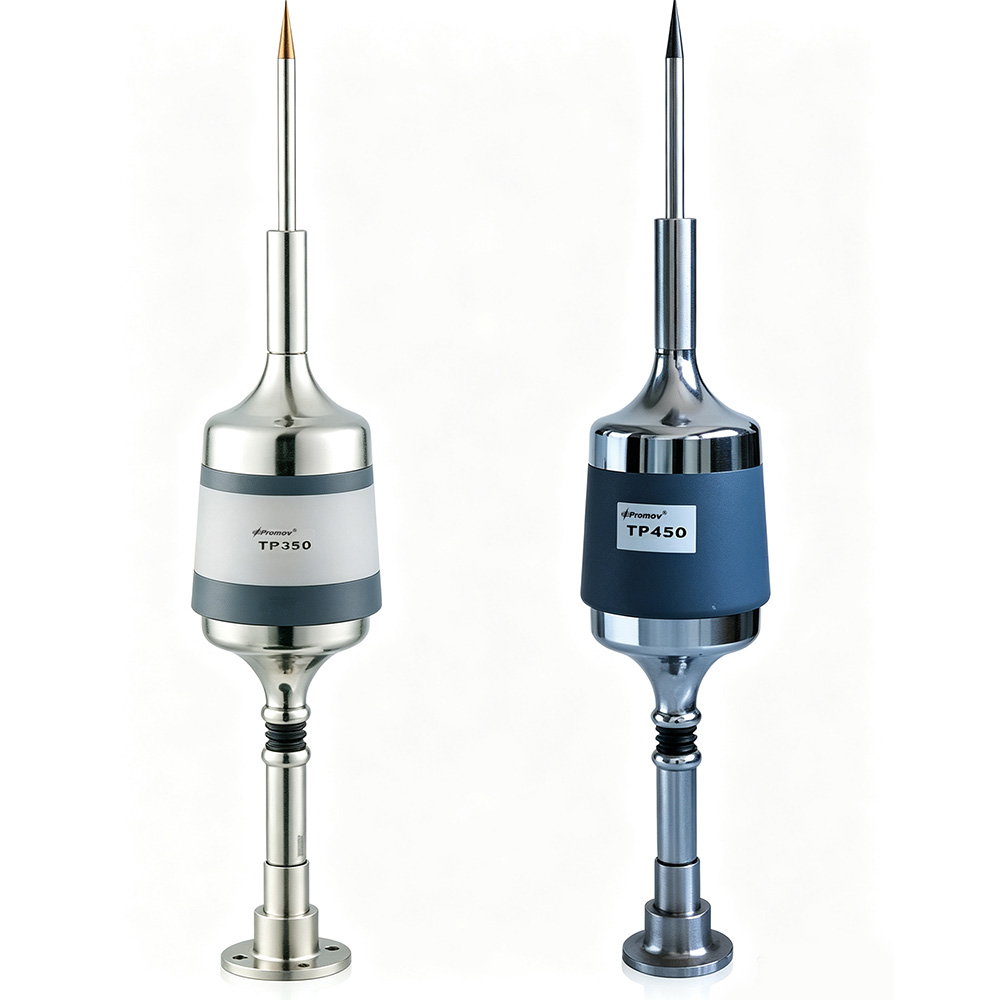

TP Series Pre-Discharge (ESE) Lightning Rod

The TP series Early Streamer Emission (ESE) lightning rod is engineered to deliver safe, reliable, and high-efficiency lightning protection for a wide range of industrial and commercial applications. As an advanced ESE lightning arrester and lightning protection system, it effectively eliminates lightning hazards to personnel and critical infrastructure, earning long-term trust from global users.

As a professional manufacturer, Taihang features a dedicated R&D team committed to continuous innovation. Our new generation of pre-discharge lightning rods and lightning protection devices comply with international standards, providing global customers with superior performance, wider protection radiuses, and cost-effective lightning safety solutions.

Get Quote

overview

wiring & installation

Certificate

download

Quality Control

Product Features

● Wider Protection Radius: Delivers a significantly larger protection range than conventional lightning rods at the same installation height.

● Advanced Pre-Discharge Performance: Achieves a pre-discharge time of up to 65μs for enhanced strike interception.

● Premium Material & Durability: Manufactured from corrosion-resistant stainless steel with no radioactive elements, offering exceptional wind resistance and long service life.

● Fully Passive Operation: Requires no external power supply and contains no energy-consuming components for zero maintenance.

● Easy Installation: Lightweight design for simple, fast installation on various structures.

Scope of Application

The TP series pre-discharge (ESE) lightning rod is suitable for lightning protection in a wide range of industrial, commercial, and infrastructure applications, including but not limited to:

● Industrial Facilities: Manufacturing plants, warehouses, production workshops, chemical plants, and industrial parks

● Energy & Power Systems: Power substations, renewable energy power stations (solar, wind), oil & gas storage tanks, and petrochemical facilities

● Commercial & Civil Buildings: High-rise buildings, shopping malls, hotels, office buildings, and residential complexes

● Transportation Infrastructure: Airports, railway stations, ports, bridges, and highway service areas

● Telecommunication & Data Centers: Communication towers, base stations, data centers, and signal transmission facilities

● Special Facilities: Museums, historical buildings, hospitals, schools, and other important public buildings

● Agricultural & Rural Infrastructure: Farm buildings, grain storage facilities, and rural power distribution systems

Technical Specifications

Model	TP250	TP450	TP650
Advance the pre-discharge time	≥25μs	≥45μs	≥65μs
Lightning current capacity	100kA ( 10/350μs )
Impulse resistance	<2Ω
Static resistance	<0.3Ω
Wind strength	62m/s ( level XVII )
Needle diameter	166mm
Needle height	790mm

Basic Circuit Diagram

Dimensions

When h<5, see the protection radius table

Class I lightning protection building

Model/Height h	2	3	4	5	6	7	8	9	10	15	20	30	45	60
TP250	20	29	39	49	49	50	50	51	51	53	54	55	-	-
TP450	28	42	57	71	71	71	72	72	72	73	74	75	-	-
TP650	35	52	69	86	87	87	87	88	88	89	89	90	-	-

Class II lightning-proof building

Model/Height h	2	3	4	5	6	7	8	9	10	15	20	30	45	60
TP250	23	34	46	57	58	59	59	60	61	63	65	68	70	-
TP450	32	48	65	81	82	82	82	82	83	85	86	89	90	-
TP650	39	58	78	97	97	98	98	99	99	101	102	104	105	-

Class III lightning-proof building

Model/Height h	2	3	4	5	6	7	8	9	10	15	20	30	45	60
TP250	26	39	52	65	66	66	67	68	69	72	75	80	84	85
TP450	36	54	72	89	91	91	91	92	92	95	97	101	104	105
TP650	43	64	85	107	107	108	108	109	109	111	113	116	119	120

Installation Instructions

Certificate

Document Download

ESE Lightning Rod

Quality Inspection(Test reference)
